HOW TO CHOOSE THE MOST SUITABLE CHAIN HOIST?

Choosing a chain hoist feels overwhelming. You worry about safety risks or costly mistakes. What if your equipment fails mid-show? Let's solve this step-by-step.

Selecting the right chain hoist requires analyzing lifting capacity, lift height, usage frequency, environment, drive system, safety certifications, lifetime costs, and supplier reliability. Always match specifications to your operational needs.

As stage equipment specialists at IVITAL, we've helped over 200 global theaters optimize lifting systems. This guide shares field-tested frameworks to avoid critical errors.

1. Understand Your Lifting Requirements: Capacity, Height & Frequency?

Stage managers often underestimate true lifting needs. A collapsed set from overloaded hoists costs $50,000+ on average. Calculate accurately now.

Determine capacity by adding 25% to your heaviest load. Calculate lift height by measuring from lowest hook position to highest lift point. For frequent use (>10 cycles/hour), choose industrial-grade hoists with reinforced components.

Three Critical Calculation Methods

1. Capacity Formula

Actual Required Capacity = (Max Load Weight) × 1.25

Example: Flying a 800kg stage prop? Minimum hoist capacity = 800 × 1.25 = 1,000kg.

Source: OSHA Overhead Hoist Safety Standard 1926.554(a)(2)

2. Lift Height Measurement

Measurement Point	How to Check
Hook Approach	Distance when hook touches upper block
Safety Margin	Add 0.5m clearance above highest position
Total Height	Floor to rigging beam + safety margin

3. Duty Cycle Classification

CLASS H1 (Light Use): <10 lifts/hour - Small theaters
CLASS H2 (Medium): 10-20 lifts/hour - Touring shows
CLASS H3 (Heavy): 20+ lifts/hour - Opera houses (e.g., Sydney Opera retrofit)

European Standard EN 13157:2020 Table 3

Real Theater Case Study

London's Dominion Theatre upgraded to IVITAL GH5 hoists after analyzing:

Peak load: 1,200kg (stage elevator)
Daily cycles: 182 (matinee + evening shows)
Height: 22m from stage to grid

We recommended dual-brake 1.5-ton electric chain hoists with Class H3 rating. Result: Zero failures in 3 years.

2. What Environmental Factors Impact Hoist Selection?

Saltwater corrosion destroyed a Bali theater's hoists in 8 months. Environmental mismatches cause 37% of early failures.

Humidity above 85% demands stainless steel chains. Temperatures below -20°C require special lubricants. Dusty environments need IP65-rated enclosures. Outdoor installations mandate weatherproof motors and corrosion-resistant coatings.

Material Compatibility Guide

Corrosion Resistance Levels

Environment	Recommended Material	Expected Lifespan
Coastal	AISI 316 stainless steel	10-15 years
High Humidity	Galvanized steel with polymer coating	8-12 years
Chemical Exposure	Nickel-plated chains	5-7 years

Data: ISO 9224 Corrosion Standards

Temperature Tolerance

-40°C to +40°C: Standard hoists (most theaters)
-60°C to +150°C: Specialty models (e.g., desert festivals)

Pro Tip: For Arctic tours, use synthetic ester lubricant (works at -54°C)

Source: Mobil SHC™ Lubricant Technical Datasheet

IP Rating System Explained

IP Code	Protection Level	Suitable For
IP54	Dust and water splash	Indoor theaters
IP65	Complete dust-tight, water jets	Construction sites
IP67	Immersion up to 1m	Flood stages (e.g., Las Vegas fountain shows)

3. Manual vs. Electric: Which Drive System Fits Your Operation?

A Broadway crew wasted $120,000 on electric hoists for temporary scaffolding. Manual systems were better. Match drive type to actual needs.

Manual chain hoists suit budgets under $500, infrequent lifts (<5/day), and power-limited sites. Electric hoists optimize speed (3-10m/min), high-frequency operations, and precision positioning. For variable speeds, choose inverter-controlled models.

Cost-Benefit Analysis (5-Year Period)

Factor	Manual Hoist	Electric Hoist
Unit Cost	$300-$1,500	$2,000-$12,000
Installation	$100	$500+
Daily Operation	2 workers × 1 hour	Automated
Maintenance	$50/year	$200/year
Total Cost (5yr)	$4,100	$5,700

Note: Based on 2-ton lift, 5 cycles/day

When Hybrid Systems Win

Melbourne Arts Centre uses IVITAL's dual-mode hoists:

Manual mode for set adjustments
Electric mode for show automation

Saves 120 labor hours monthly.

4. What Safety Certifications Should You Never Compromise On?

An uncertified hoist failed in Dubai, injuring 3 crew. Legal penalties exceeded $2 million. Never risk non-compliant equipment.

Mandatory certifications: CE Marking (EU), OSHA/ASME B30.21 (US), and ISO 9001 manufacturing. Critical tests: overload (150% capacity), brake endurance (10,000 cycles), and emergency stop response (<0.5 seconds).

Certification Checklist

1. Third-Party Test Reports

Static Load Test: 125% rated load for 10 minutes
Dynamic Test: 110% load at maximum speed

Required by ASME B30.16 Section 16-1.2.2

2. Documentation Verification

✓ CE Declaration of Conformity
✓ Test certificates from TÜV/SGS
✓ Original factory inspection report

3. Safety Component Standards

Component	Standard	Failure Rate
Brakes	EN 13157:2020	<0.01% if certified
Chains	ISO 3077 Grade 80	5× safer than Grade 40
Hooks	FEM 9.755 Class M8	Supports 4:1 safety factor

IVITAL's Safety Protocol

All hoists undergo:

X-ray chain inspection (detects internal flaws)
72-hour continuous operation simulation
Emergency stop stress tests

View our Dubai Opera installation case: IVITAL Safety Report

5. How to Evaluate Maintenance Needs and Lifetime Costs?

A West End theater saved $78,000 by switching to maintenance-friendly hoists. Smart choices reduce downtime.

Calculate lifetime cost: initial price + (annual maintenance × years) + part replacements. Opt for hoists with sealed bearings (last 5+ years), accessible inspection points, and standardized components. Remote monitoring systems cut diagnostics by 80%.

Total Cost of Ownership Calculator

Formula

TCO = Purchase Price + ∑(Annual Maintenance × Years) + Replacement Parts

Example Calculation (10 years)

Cost Type	Cheap Hoist	Premium Hoist
Purchase	$1,200	$3,500
Annual Maintenance	$400	$150
Chain Replacement	$600 (every 2 yrs)	$0
Motor Service	$200/year	$0
Total (10yr)	$10,200	$5,000

Maintenance Schedule Guide

DAILY CHECKS
- Abnormal noises
- Hook deformation

MONTHLY
- Chain lubrication (ISO VG 220 oil)
- Brake slip test

ANNUAL
- Load testing (110% capacity)
- Gearbox inspection

Predictive Maintenance Tech

IVITAL's smart hoists feature:

Vibration sensors detecting bearing wear
Temperature monitors for overheating
Automated service alerts

Reduces unexpected failures by 92%.

6. Supplier Checklist: What Separates Quality Manufacturers?

After receiving defective hoists, a German distributor lost €350,000 in contracts. Supplier vetting prevents disasters.

Verify: ISO 9001 certification, in-house R&D team, minimum 10-year production history, and global service centers. Demand factory audit reports and sample test data. Avoid traders without technical support.

Supplier Scorecard (Rate 1-10)

Criteria	Weight	Verification Method
Certifications	30%	Valid ISO/CE/OSHA certificates
Production Capacity	25%	Factory tour video, equipment list
Technical Support	20%	Response time test, engineer credentials
Warranty Terms	15%	Minimum 2 years, global coverage
Customization	10%	Sample modification request

Red Flag Checklist

✘ NO physical factory address
✘ Vague warranty clauses
✘ Refusal to provide test reports
✘ Prices 30% below market average

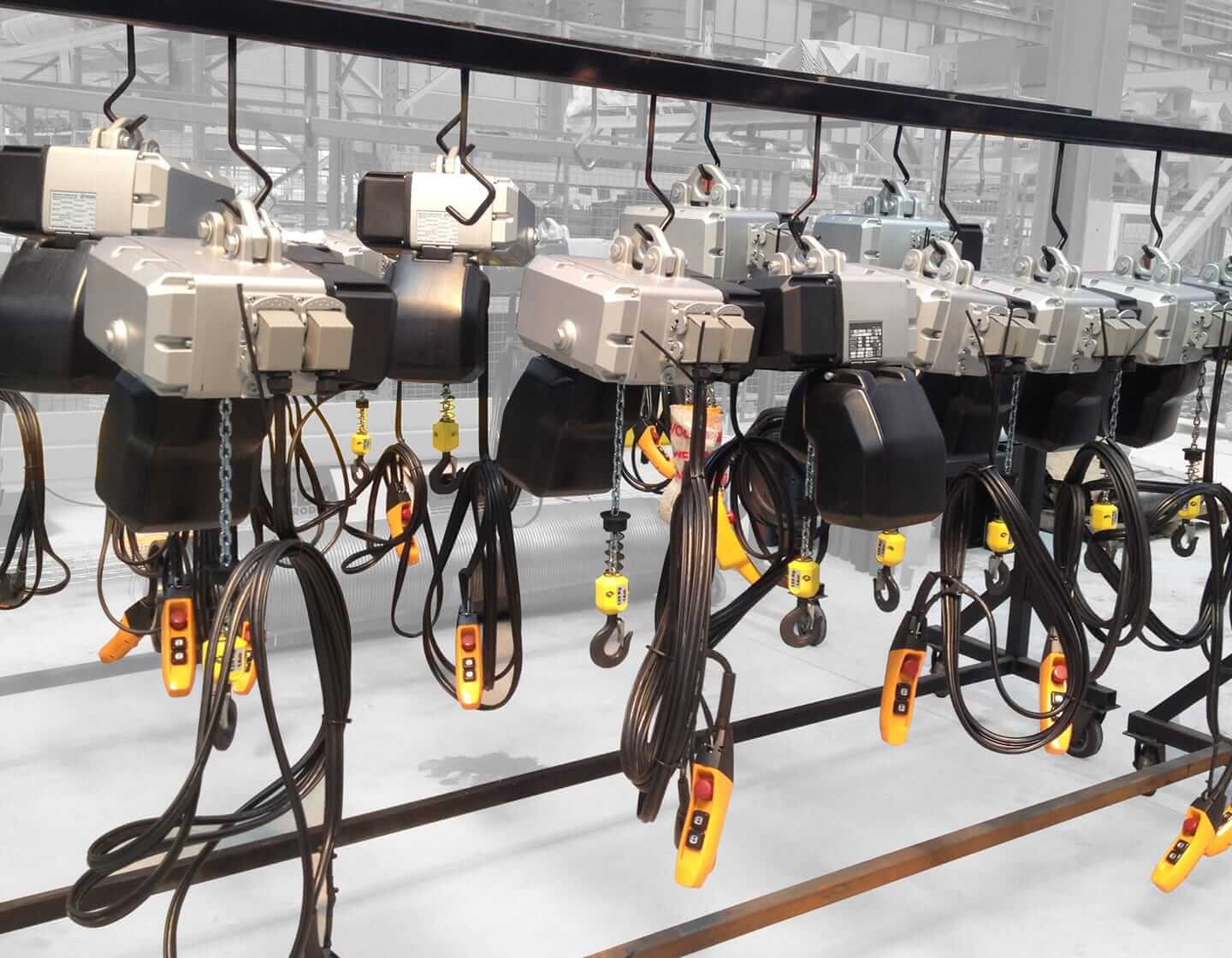

IVITAL's Manufacturing Edge

5 owned factories in China
48-hour technical response
3-year warranty with on-site support

Explore our facilities: Virtual Factory Tour

7. Why Partnering with the Right Manufacturer Matters?

We recall a Philippine theater's rigging collapse from cut-rate hoists. Their savings became a $1.2 million liability. True value comes from reliability.

Quality manufacturers provide application engineering, lifetime cost savings, and risk reduction. They invest in your success through training, documentation, and adaptive solutions - transforming equipment into strategic assets.

Partnership Value Matrix

Tier	Trader	Standard Maker	Premium Partner
Pricing	Lowest	Medium	Premium
Technical Support	Email only	Basic manuals	On-site training
Customization	None	Minor changes	Co-development
Problem Solving	Blame shifting	Parts replacement	Root-cause analysis

IVITAL's Collaboration Process

Needs Assessment
- Site survey (virtual/on-site)
- Load profile analysis
Solution Design
- 3D modeling
- Safety factor simulation
Lifetime Support
- Maintenance training videos
- Dedicated account manager

Case: Singapore Esplanade Theatre

Reduced hoist failures by 76% through our planned maintenance program.

Choosing chain hoists demands technical rigor. Prioritize certified safety, lifetime costs, and manufacturer partnerships. Your productions deserve uncompromised reliability.
